- Place of Origin: China
- Brand Name: xinlide
- Model Number: 002
1. Overview

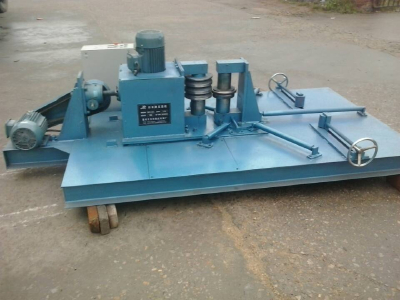

DM-N
Duct beading machine
First, the main use of equipment
The equipment is mainly used for the fan, the drum of the automatic rolling process
Two, equipment structure
1, the use of the steel structure of the form, mainly by the body, the drive shaft, driven shaft, the speed reducer, trailer, electrical control box and other parts
2, the device uses planetary cycloid reducer to the main shaft output power, that is, through the silent tooth sprocket transmission, mechanical movement closely
3, the upper and lower feed spindle driven by two hydraulic cylinders, so the size of the plate can be adjusted according to the situation
Three, working principle
The starting motor is switched on, and the cylinder pressure into reinforcement mechanism, the initiative to start the motor to rotate, move the motor and beading.
The work is stable, reliable, maintenance free.
The operation is simple and intuitive.
Four, the characteristics of the plane
The special plane has the characteristics of reasonable design, advanced control system, reliable performance, easy operation, convenient maintenance, novel and so on
Five, the main technical parameters
Power supply voltage three-phase AC380V 50Hz
Rated load rate of 100%
The thickness of the material for phi 1.0- Phi 2.0mm
Six, the basic requirements of the site environment
1, the ambient temperature: -15-- 45 degrees, the maximum temperature difference of 30 degrees C
2, relative humidity: 20%-80%
3, the use of location: Indoor
4, power supply voltage: three-phase AC380V 50Hz
5, voltage fluctuation range: 10%-15%
6, the work site non corrosive gas
7, workshop Foundation: conventional cement ground treatment can be
Maximum 1.2 meters!
- Place of Origin: China
- Brand Name: xinlide
- Model Number: 002

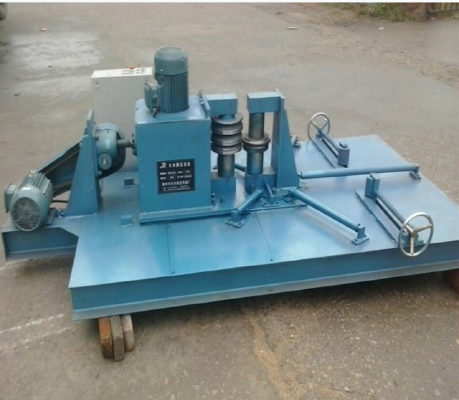

Duct beading machine
