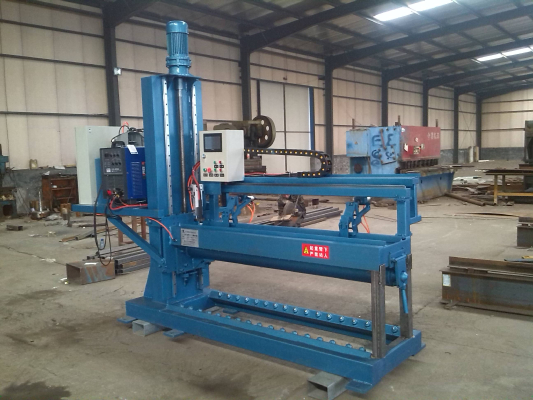

DM-NZZ-400B type argon arc welding automatic seam welding machine, the welding King welding power, industrial PLC and stepper motor to realize automatic welding.
The machine has the following characteristics:
1.1. uses the welding King argon arc welding power source, the arc is reliable, has the depth of penetration control function, the welding stability, the weld shape is beautiful, the welding quality is good
Using 1.2. control the operation of the whole domestic Xinjie industrial PLC, the control is accurate and reliable, simple and convenient operation.
1.3. adopts the step motor, the welding speed can be adjusted, the adjustment is convenient and reliable, the adjustment range is large, the precision is high, and the operation is stable and reliable
1.4. using three-dimensional lifting type can achieve a variety of different diameter of the workpiece welding, through the lift motor to adjust the height of the adjustment is convenient and reliable, stable and reliable operation
1.5. adopts the touch screen to input the welding length directly, and can realize the welding setting of any size in the welding range
The 1.6. front end uses the block mechanical positioning starting point, the localization is accurate
1.7. improves the work efficiency and reduces the labor intensity of workers
Two. Main purpose and scope of application
This machine is mainly used for welding seam, welding and CO2 protection welding with argon arc welding, mechanical adjustable length, different diameter cylinder welding butt welding workpiece. The parameters (working condition, spot welding, welding and debugging etc.) can be changed by the panel interface.
This machine is applicable to a variety of straight ring fan cylinder workpiece welding, can also be used for other types of products straight seam welding.
Three. Main technical parameters
1 input voltage 3 phase AC 380V 50Hz
2 input capacity 12KVA
3 welding speed 0 ~ 2r/Min
4 welding voltage 20 ~ 37V
5 welding current 15 ~ 400A
6 motor power 1KW
7 weld length from 3 to 1800MM
8 argon consumption of 2.5 ~ 20L/Min
9 compressed air pressure >0.5MPa
10 external dimensions 1.9m * 1.1m * 2.0m
11 host weight 800Kg
Four. Main structure and characteristics
The welding machine is composed of four main parts: main engine, electric control system, pneumatic system and welding power supply
4.1. host:
The host is a three-dimensional lathe type structure, mainly comprising a main frame, beam welding, welding torch before and after balloon tight organization, feed and an adjusting mechanism.
Main frame of < 1 >:
The main frame by frame, three-dimensional beam and other components. The front fuselage headstock, three-dimensional beam driven welding beam lifting.
Welding beam of 2:
The welding torch by the beam walking mechanism, workpiece clamping mechanism and workpiece positioning mechanism, etc..
"3" gun feeding and adjusting mechanism can adjust the level of argon arc welding torch
4.2. electronic control system:
The electronic control system consists of industrial PLC, touch screen, step motor, three asynchronous motors, electrical components and electronic control box and control panel
4.3. pneumatic system:
Pneumatic system is mainly composed of cylinder, throttle valve, solenoid valve, two conjoined
4.4. welding power source:
The welding power source is selected by Guangzhou Tian Tian mechanical and Electrical Equipment Co., Ltd. (), which is the welding arc welding machine WS-400B
Common specifications 1.5*1.5 m 1.2*1.2 M
